Welding

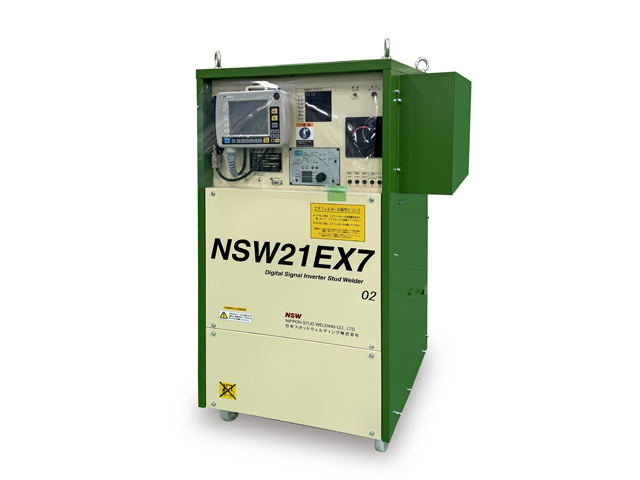

NSW21EX
1. Stable welding quality by digital control
2. Environment friendly space saving and power saving design
3. Connection to two Guns
Improvement of operation
Setting of welding conditions by rotary switch Breakdown detected by self diagnoses is shown on the seven segment monitor.
Separate type operation panel (Pendant)
Setting of detailed welding conditions and monitoring range Welding waves can be shown.
Products summary
| Name・Type | NSW21EX |
|---|---|
| Applicable stud diameter | 3 ～ 9 |
| Input voltage | Three phase 400Volt |
| Welding current | 200 ～ 2000 Amp． |
| Welding time | 5 ～ 100 msec． |
| Usage rate | 20 pcs. / min. ( diameter 9 studs) |
| Dimensions | W 545mm x D 590mm x H 1100mm *Air Filter not included |
| Weight | Approx. 140kg |
