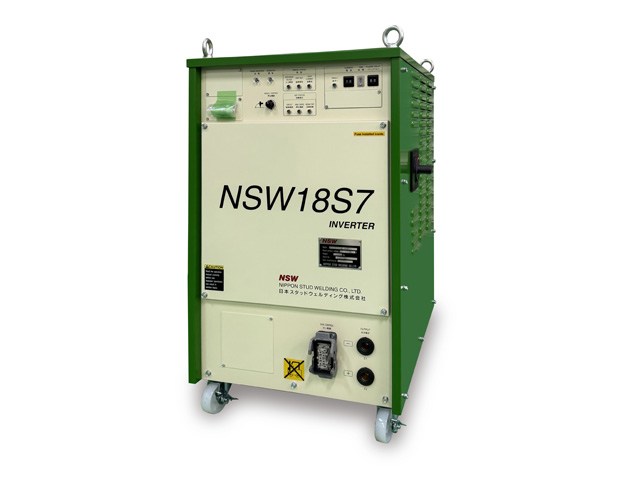

NSW18S

1. In spite of Inverter control method, lower price was realized.
2. Corresponding to auto stud feeding
3. By adding one more welding condition switch, two set of welding condition change are available. (Option)
4. Angle control function is equipped to prevent slant of the stud.

Products summary

Name・Type	NSW21EX
Applicable stud diameter	3 ～ 9
Input voltage	Three phase 400Volt
Welding current	200 ～ 2000 Amp．
Welding time	10 ～ 100 msec．
Usage rate	20 pcs. / min. ( diameter 9 studs)
Dimensions	W 520mm x D 660mm x H 910mm
Weight	Approx. 125kg
